Lecture 37: Concluding Lecture

1. Refractories in Steelmaking

img Conceptual Explanation

The steelmaking industry operates under a core slogan: “To produce the highest quality of steel, you require the highest quality of refractories” . Refractories are consumable materials that undergo erosion and degradation over time. Because the absolute best refractories are prohibitively expensive, steelmakers must constantly strike a compromise between refractory cost and operational performance.

Refractory Consumption Trends

Refractory consumption per ton of steel is a critical parameter that dictates overall steelmaking efficiency. Over the last decade, there has been a drastic improvement in material efficiency.

Board Work: Refractory Consumption / Steel

40 kg -------⇒ 18 kg

       (last 10 years)

Major International Players:

  • RHI Magnesita

  • Calderys

  • Vesuvius

  • Tata-Krosaki

Physical Interpretation: Refractory Types and Raw Materials

In basic steelmaking operations, acidic refractories are heavily avoided. Refractories are divided into two main categories based on their manufacturing process :


Board Work: Products & Raw Materials

Types of Refractories:

  • Bricks & Shapes (Used for lining vessels, ladles, and furnaces)

  • Isostatically Pressed Refractories (Used for black refractories like Shrouds, SENs [Submerged Entry Nozzles], and Tundish Nozzles)

Raw Materials:

  • Fireclay

  • Andalusite (Al-Silicate)

  • Bauxite (Al₂O₃)

  • Magnesite (MgO)

  • Dolomite (MgO) > * Carbon > * Zirconia > * Chromite sand

Important Remarks / Instructor Notes:

  • Material Specificity: Zirconia is specifically used for tundish nozzles due to its high erosion resistance, while Chromite sand is strictly utilized as a filler for tap holes and well blocks .

  • Dolomite Assumption: While dolomite chemically contains both calcium and magnesium carbonates, the instructor writes (MgO) next to it to emphasize the basic metal oxide phase critical for basic steelmaking environments .

The Problem with Carbon in Refractories (Alumina Clogging)

Carbon is traditionally mixed into refractories to improve non-wettability (preventing liquid steel from adhering to the refractory). However, the presence of carbon initiates detrimental high-temperature chemical reactions within the refractory itself .

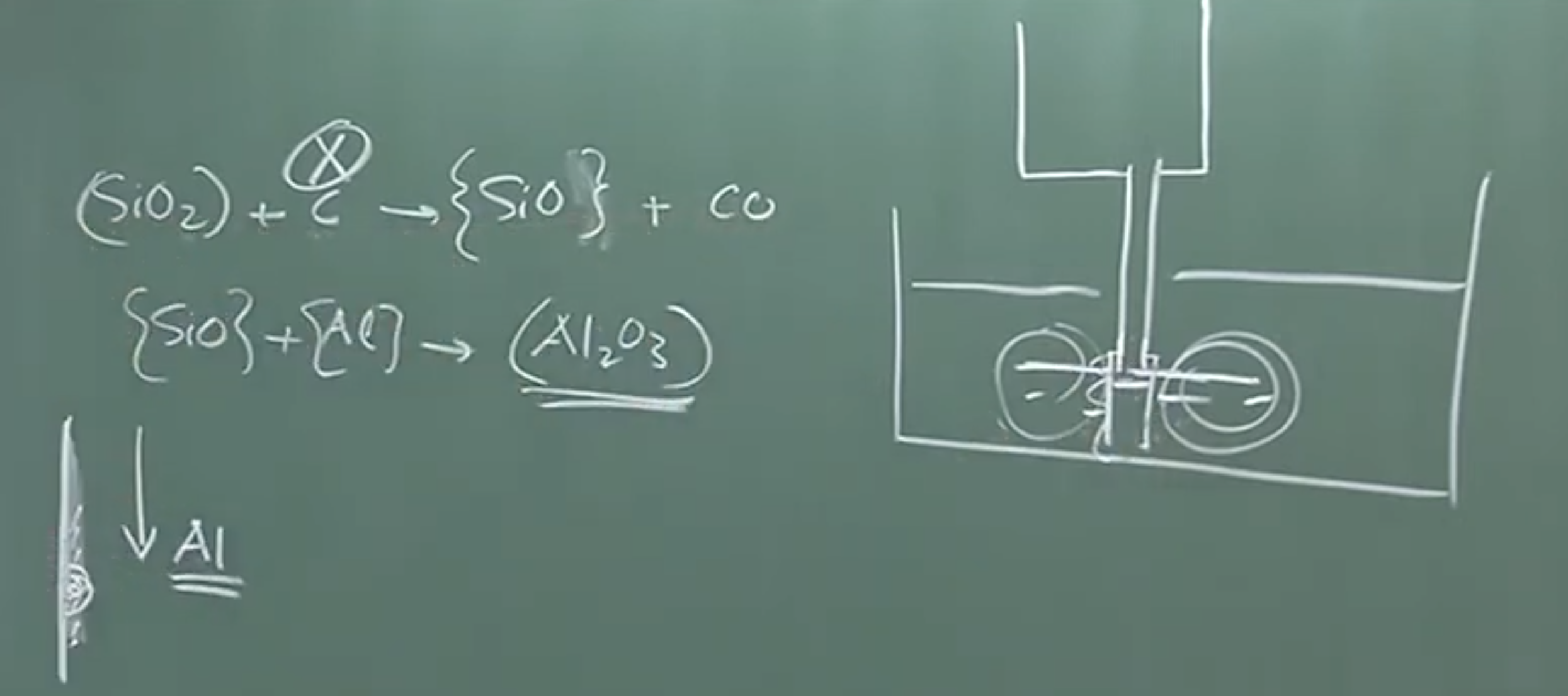

Board Work & Mechanism: Alumina Deposition in SEN

Chemical Reactions:

  1. (SiO₂) + C --> {SiO} + CO

  2. {SiO} + [Al] --> (Al₂O₃)

    Where () denotes a solid/slag phase, {} denotes a gaseous phase, and [] denotes elements dissolved in liquid steel.

Plaintext

=======================================
      REFRACTORY WALL (e.g., SEN)
=======================================
 Internal Reaction:
 (SiO₂) + C  -->  {SiO} + CO
                     |
                     | {SiO} gas diffuses out
                     v
---------------------------------------
      LIQUID STEEL FLOW
---------------------------------------
                     |
 {SiO} reacts with   |
 dissolved [Al]      v
 {SiO} + [Al]  --> (Al₂O₃) + [Si]

 Solid (Al₂O₃) precipitates, nucleates
 on the refractory wall, and builds up,
 causing severe nozzle clogging.
=======================================

Because of this clogging mechanism, modern refractory R&D is heavily pushing toward developing carbon-less refractories .

Smart Refractories

Modern refractories are being embedded with sensors (e.g., RFIDs). When refractory thickness degrades past a critical safety threshold, a signal is transmitted, allowing a robotic arm to automatically service the exact worn-out location . Additionally, disposable shroud attachments are being utilized to prevent air-mixing during the initial filling of an empty tundish. These attachments intentionally break off and dissolve once submerged .

2. Clean and Green Steelmaking

Conceptual Explanation

The steel industry is under immense global pressure to reduce its carbon footprint. The primary generators of direct CO₂ emissions in an integrated steel plant are the Blast Furnace (BF), the Sinter Plant, and the Coke Ovens . Coke acts as both the primary heat source (fuel) and the chemical reductant.


Board Work: CO₂ Sources & Coke Rate Target

  • BF

  • Sinter

  • Coke-oven

Coke Rate Reduction:

450 kg/thm -------⇒ 350 ~ 375 kg/thm

  • Energy and material recycling

Physical Interpretation: Beneficiation and Thermal Economy

Reducing the coke rate to the theoretical minimum (~350 kg/thm) requires strict process optimization. If raw iron ore is heavily beneficiated externally to achieve a 60-65% Fe concentration before being charged, less gangue enters the blast furnace. Less gangue means a heavily reduced volume of oxygen/air needs to be blown, which shrinks the denominator in productivity calculations, effectively raising mill productivity and drastically slashing the necessary coke rate

Important Remarks / Instructor Notes:

  • Sensible Heat Recovery: Transitioning from “wet” gas cleaning to “dry” de-dusting systems allows plants to capture and reuse the sensible heat (300°C+) present in the blast furnace exit gas.

  • Material Recycling: Blast furnace dust—which is extremely rich in fine iron, coke, and limestone powder—is being agglomerated/compacted to be recharged back into the furnace . Steelmaking slag is being highly recycled for cement clinker production (e.g., JSW Cement) .

  • Future Vision: An ideal green setup involves an Electric Arc Furnace (EAF) powered by electricity generated from a DRI/Corex plant, directly feeding into a continuous strip caster, completely bypassing energy-heavy reheating furnaces .


3. Iron and Steelmaking in India

Conceptual Explanation

A nation’s per capita steel consumption is a direct index of its society’s affluence. India is currently the second-largest steel producer globally, producing ~111 million tons recently . However, the Ministry of Steel’s target is to hit 300 million tons by 2030 to achieve a per capita consumption of roughly 200 kg . Achieving this requires a drastic “slope change” in industrial expansion, which is currently lagging behind the required trajectory.

Physical Interpretation: The Induction Furnace Dilemma

India has a highly unique production landscape split across Integrated Mills (~70 MT), Arc Furnaces (~10 MT), and Induction Furnaces (~25-30 MT). Induction Furnaces face a massive metallurgical hurdle:

  • The Theory: Induction furnaces (IF) generate massive stirring via inductive currents but are historically designed purely for melting clean scrap, not for metallurgical refining .

  • The Reality: Scrap is expensive, leading IF operators to use cheaper, coal-based Direct Reduced Iron (DRI). Coal-based DRI introduces sulfur into the melt.

  • The Conflict: Removing sulfur requires a highly basic slag (high CaO). However, most small IFs in India utilize a cheap, acidic silica lining . If an operator introduces a basic slag to remove the sulfur, the slag aggressively attacks and dissolves the acidic silica lining, requiring highly frequent, expensive furnace relining.

  • The Result: Operators often choose to protect their cheap linings by avoiding basic slags entirely, resulting in extremely poor-quality, sulfur-rich steel . Furthermore, IFs are often too small (<10 tons) to successfully utilize a Ladle Furnace without suffering catastrophic heat losses .

Important Remarks / Instructor Notes:

Scaling the Indian steel industry to 300 million tons of clean, competitive steel is currently severely hindered by a sub-optimal domestic R&D culture . With minimal indigenous technological developments, the industry relies heavily on foreign solutions, threatening the long-term sustainability of green steelmaking inside the country.

Relevant Link: https://youtu.be/gKcCBxDUdxg

Audio v2:

Comprehevnsive Notes: Concluding Lecture (Lecture 37) on Iron & Steelmaking

1. Post-Casting & Solid State Processing (Downstream Operations)

  • Context: Converting liquid steel to solid steel via casting (including emerging technologies like thin slab and strip casting) does not mean the steel is fully “made.”

  • Properties: Final properties and engineering performance are determined by microstructure and texture, not just composition and cleanliness.

  • Downstream Operations: Includes reheating, soaking, rolling, and galvanizing.

    • Cold Rolling: Carried out at or below the recrystallization temperature; significantly affects the mechanical properties of steel.

  • Direct Charging Methods: Rather than letting blooms/slabs cool in the casting yard (losing sensible heat), cut billets from the continuous caster are directly put into soaking pits prior to rolling. This heavily improves thermal economy.

  • Note: Solid-state processing requires a microscopic view (Physical Metallurgy/Mechanical Working of Steel) compared to the macroscopic view of traditional iron and steelmaking.

2. Refractories in Steelmaking

  • Slogan: “To produce the highest quality of steel, you require the highest quality of refractories.”

  • Role & Cost: Refractories erode and degrade, requiring furnaces to be relined. They are expensive, so a compromise between cost and quality is often necessary.

  • Refractory Consumption Trends:

    • Refractory consumption per ton of steel determines steelmaking efficiency.

    • ~10 years ago: Consumption was 40 kg/ton of steel.

    • Today: Consumption is less than 18 kg/ton due to significant improvements in quality.

  • Major Global & Indian Players:

    • International: RHI Magnesita, Vesuvius, Calderys.

    • Indian: IFGL, Oriental Refractories, Orissa Cement Limited (OCL).

  • Types of Refractory Products:

    1. Bricks & Shapes: Used to line vessels, ladles, and furnaces.

    2. Isostatically Pressed Refractories (Black Refractories): E.g., Tata Krosaki. Used for shrouds, SENs (Submerged Entry Nozzles), and tundish nozzles.

Raw Materials & Specific Applications

Since steelmaking is a basic process, acidic refractories are generally avoided.

  • Key Raw Materials: * Andalusite & Fireclay: Sources for alumina silicate. Andalusite is cheaper because it contains silicates.

    • Bauxite: Source for Alumina (Al₂O₃). Higher purity = better refractory, but much more expensive.

    • Magnesite & Dolomite: Sources for Magnesia (MgO). Usually fused or sintered.

  • Specific Material Applications:

    • Zirconia: Used specifically for tundish nozzles.

    • Chromite Sand (non-sintered): Used to close tap holes and well blocks.

    • Dolomite and Magnesite: Used for BOF (Basic Oxygen Furnace) converters.

    • Carbon: Mixed into magnesite bricks (Magnesite-Carbon bricks) to reduce wettability so liquid steel doesn’t stick.

The Problem with Carbon in Refractories

  • While carbon reduces wettability, it causes detrimental chemical reactions.

  • Alumina Clogging Mechanism in SENs:

    1. Carbon reduces silica in the refractory: SiO₂ + C → SiO (gas) + CO

    2. Silicon suboxide (SiO) gas is extremely reactive. It diffuses to the steel-refractory interface.

    3. Dissolved aluminum in the liquid steel reacts with the SiO gas: SiO (gas) + [Al] → Al₂O₃ (solid).

    4. Solid Al₂O₃ nucleates and deposits on the refractory walls, causing nozzle clogging.

  • Current Trend: Industry is moving toward carbon-less refractories to prevent these reactions.

Smart Refractories & Innovations

  • RFID Control/Sensors: Sensors are embedded in refractories. If thickness falls below a critical level, it signals a robotic arm to fix the exact worn-out location.

  • Disposable Shroud Attachments: Used to prevent air-steel mixing when filling an empty tundish. The attachment automatically breaks off and dissolves once the shroud tip is safely submerged in liquid steel.

  • Recycling: Worn-out slide gate plates are repurchased by refractory industries for recycling.

3. Clean and Green Steelmaking

  • Carbon Footprint Sources: The Blast Furnace (BF), Sinter Plant, and Coke Ovens are the three main sites of direct CO₂ generation.

  • Coke Rate Targets:

    • Theoretical minimum coke rate is ~350 kg/ton of hot metal.

    • Historically many plants operated at 450 - 600 kg/ton. Target is to reduce this to 350–375 kg/ton.

  • Methods to Reduce Coke Rate & Emissions:

    • External Beneficiation: Upgrading iron ore to 60-65% Fe before charging. Less gangue means less oxygen is needed, which increases productivity and reduces the coke rate.

    • Stack gas injection and coal injection at the tuyeres.

    • Oxygen blast furnaces.

    • Controlling the direct-to-indirect reduction ratio.

4. Energy & Material Recycling

  • Sensible Heat Recovery:

    • Dry Dedusting: Replacing wet gas cleaners with dry systems to capture and reuse the sensible heat (>300°C) from blast furnace/exit gases.

    • Capturing radiant heat from hot slabs cooling in the piling yards using photovoltaic/thermoelectric devices.

    • Harnessing the 60-70°C temperature drop during the daily tapping process (can generate several megawatts of power to run plant water pumps or supply adjacent colonies).

  • Material Recycling:

    • BF Dust: Rich in iron, coke, and limestone powder. Can be compacted and charged back into the furnace.

    • Slag Recycling: Steelmaking slag (discharged at 1300-1400°C) accounts for 20-30% of total material volume. It is highly recycled for cement clinker making (e.g., JSW Cement).

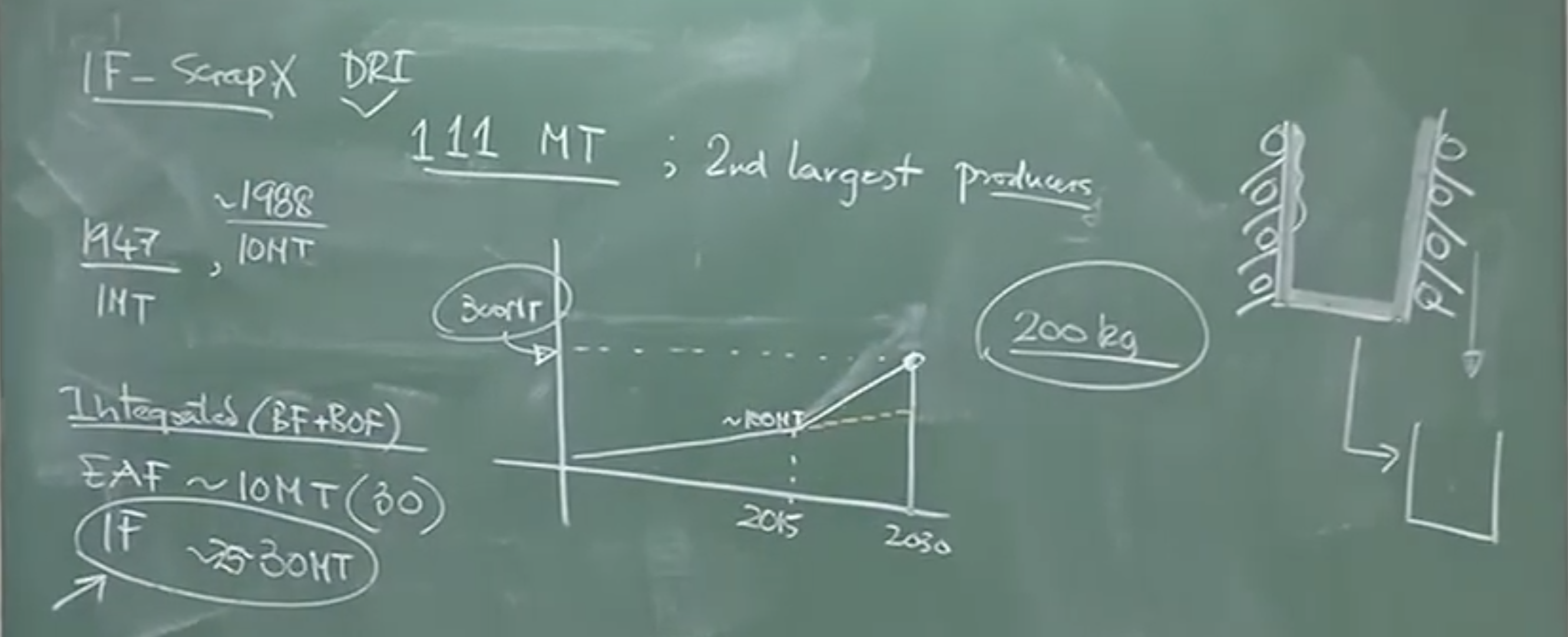

5. Iron and Steelmaking in India

  • Production Statistics:

    • 1947: ~1 million tons (MT).

    • 1987: ~10 MT.

    • Current (Recent Year): ~111 MT (2nd largest producer globally, but far behind China).

    • 2030 Target: 300 MT (To achieve a per capita consumption of 200 kg, meaning 2/3 of the population can own cars, appliances, etc.).

    • Reality Check: Current trajectory points to only 150–175 MT by 2030. A paradigm shift (aggressive land acquisition, capacity expansion) is needed.

  • The Three Production Sectors:

    1. Integrated Steel Mills: (~70 MT) Includes Tata, JSW, JSPL, NMDC, RINL. They use hybrid tech (BF, Corex, DRI, BOF, Ladle Furnaces).

    2. Special Steel / Arc Furnace (EAF): (~10 MT across ~30 plants).

    3. Induction Furnace (IF): (~25-30 MT). Employs hundreds of thousands across >3000 small plants.

The Induction Furnace (IF) Problem in India

  • Core Issue: IFs are designed as melting units for clean scrap, not refining units.

  • Because scrap is expensive, IFs use cheaper coal-based DRI.

  • Coal-based DRI introduces sulfur into the melt, requiring a basic slag for desulfurization.

  • Refractory Conflict: IFs are traditionally lined with cheap acidic silica lining. If a basic slag is used to remove sulfur, it rapidly corrodes and destroys the acidic lining, requiring frequent relining.

  • Result: To save the cheap refractory, IF makers avoid basic slags, resulting in the production of extremely poor-quality steel.

  • Size Constraint: Furnaces under 10-ton capacity cannot install a Ladle Furnace (LF) for secondary refining because the heat loss is too enormous to be profitable.

State of R&D in India

  • R&D in Indian iron and steelmaking is currently sub-optimal.

  • Minimal indigenous solutions have been developed since independence; most tech is imported from foreign firms (SMS Siemag, Danieli, Chinese firms).

  • Small EAF/IF units have no tangible R&D to develop clean steel strategies.

  • Conclusion: The subject is 90% scaled. The final 10% (Clean and Green steel, extreme cleanliness) is the toughest frontier (like the final leg of Mount Everest) and requires the sharpest minds to solve.
