LECTURE 17: Alternative Ironmaking (COREX) & Introduction to Steelmaking

1. Conclusion of Ironmaking: The COREX Process

Schematic Overview of the COREX Process

The COREX process is an alternative ironmaking technology that utilizes a two-stage reactor system:

1. Shaft Furnace (Top): For pre-reduction of iron ore.

2. Melter Gasifier (Bottom): For final melting and gasification.

Instructor Notes / Physical Interpretation:

The feed entering the Melter Gasifier includes coal (fine particles 6–50 mm size, potentially mixed with coke), pure oxygen, and pre-reduced pellets/DRI from the shaft furnace above. An intense agitation is set up due to the pure oxygen and high temperature, creating an intensely reducing environment [01:54]. The gas generated here consists of roughly 85% (CO + H₂).

Gas Flow and Energy Recovery

• Cooling the Gas: The highly hot Smelter Gasifier Exit Gas (SGE) must be cooled and cleaned before entering the shaft furnace. If not cooled, the gas would transfer too much heat, causing premature melting/fusion of the descending solid column in the shaft [03:07].

• Top Gas Calorific Value: The spent gas exiting the top of the shaft furnace still contains a very large proportion of CO (30-40%), CO₂, and H₂O [03:28].

• Comparison: The COREX exit gas has a calorific value of ~7,000 kJ/m³, significantly higher than Blast Furnace (BF) gas, which is roughly 3,000 to 4,000 kJ/m³ [03:44].

Process Economics and Sustainability

Conceptual Explanation:

The COREX process can only compete economically with a traditional Blast Furnace if the high-calorific exit gas is captured and used. Most COREX plants (like JSW and Essar in India) utilize this exit gas for power generation. Without selling this generated power, COREX cannot match the low production cost of blast furnace hot metal [07:40].

Price Comparison (Approximate Indian Rupee per Ton) [06:49]:

• Iron Ore: ~₹500 / ton (₹0.5 / kg)

• Blast Furnace Hot Metal: ~₹20,000 - ₹25,000 / ton (₹20 - ₹25 / kg)

• DRI (Direct Reduced Iron): ~₹30,000 / ton

• Steel: >₹50,000 / ton (Special grades can reach ₹200,000 / ton)

Advantages of COREX over Blast Furnace [09:16]

1. Eliminates Coke Ovens: Relies primarily on non-coking coal, which is abundant. Eliminating the coke oven battery drastically reduces massive capital expenditures and space requirements.

2. Environmental Friendliness: Without coke making and sinter plants, the overall carbon footprint is lower. The generated CO is fully utilized for power generation rather than requiring additional thermal coal [12:08].

3. Similar Product Quality: Produces hot metal of comparable chemistry and temperature to the blast furnace, ensuring no deterrent effect on downstream steelmaking.

---

2. Integration of Ironmaking and Steelmaking Routes

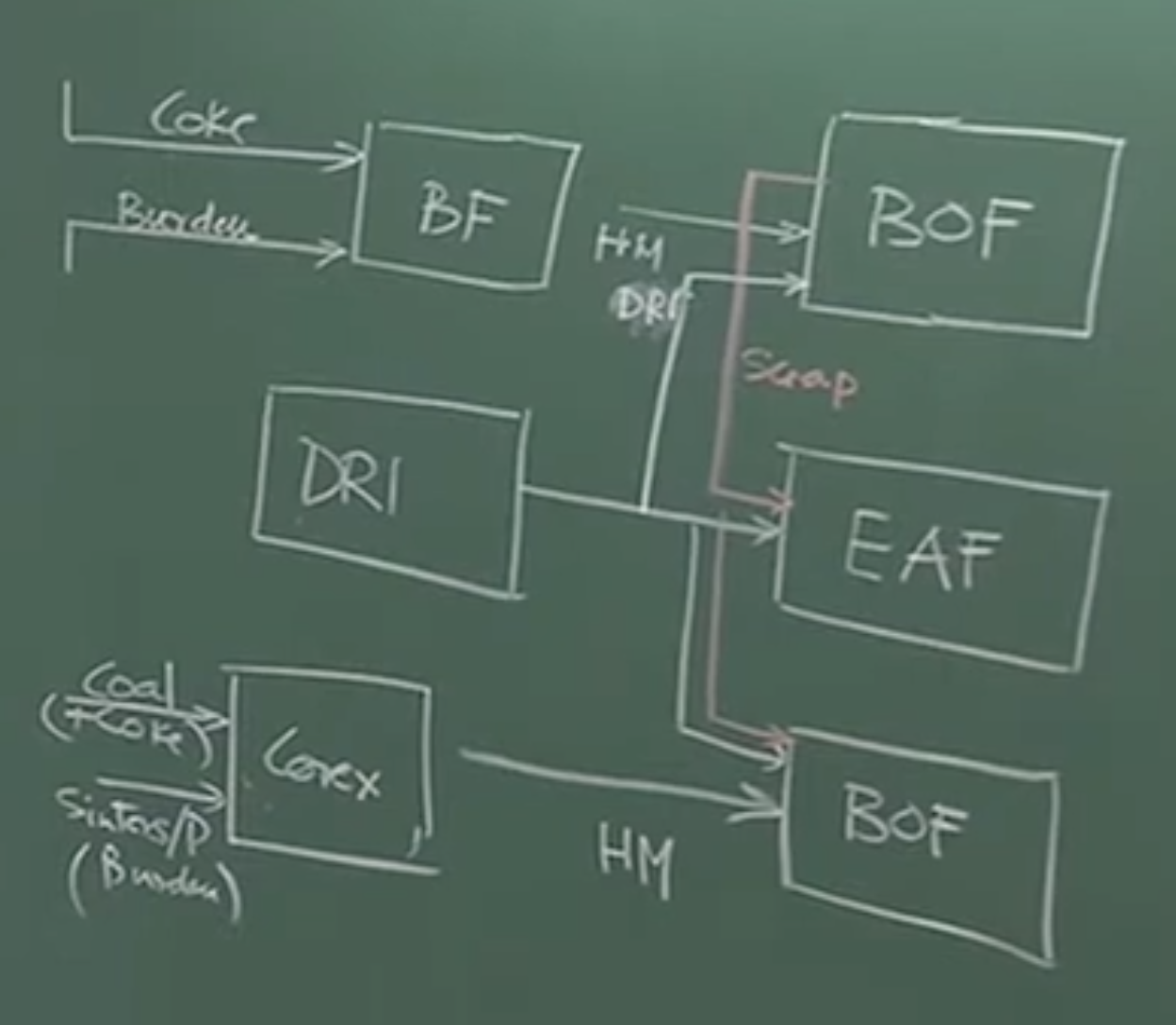

Board Work / Structural Flowchart [00:13:06 - 00:16:06]:

Plaintext

[Coke Ovens] -----> (Coke) --------+
                                   |
[Sinter/Pellet] --> (Burden) -----> [BLAST FURNACE] ----> (Hot Metal) ----> [BOF]
                                                                              ^
[Coal + Iron Ore] -> [COREX] ---------------------------> (Hot Metal) --------|
                                                                              |
[Gas/Coal] --------> [DRI Plant] -> (DRI) ------------------------------------+ (Used as scrap supplement/coolant)
                                      |
                                      +-----------------------------------> [EAF / Induction Furnace]

Important Remarks: As modern steel plants become more efficient, internal scrap generation has decreased. Therefore, DRI is increasingly used as a scrap substitute or as a coolant in the Basic Oxygen Furnace (BOF) when the melt temperature spikes. DRI is also beneficial for minor composition “trim” adjustments because it retains some oxygen [17:14].

---

3. Introduction to Steelmaking

Iron is merely an intermediate product; it must be converted into steel to achieve significant engineering value and a massive jump in market price [25:43]. Steelmaking is fundamentally an oxidizing refining process designed to eliminate impurities (C, Si, Mn, P) that have a high affinity for oxygen [29:01].

Composition Changes: Hot Metal vs. Crude Steel

Board Extraction & Correction (Weight Percentages) [00:26:10 - 00:28:53]:

Parameter	Blast Furnace Hot Metal	Crude Steel (After 1st Refining)
Carbon (C)	~4.3%	~1.1% (Medium Carbon Grade)
Silicon (Si)	0.4% – 2.5%	~0% (Virtually completely removed)
Manganese (Mn)	0.2% – 0.4%	~0.1%
Sulfur (S)	~0.02% (Average)	~0.01% – 0.02% (Very little removal under oxidizing conditions)
Phosphorus (P)	Max 0.1%	~0.04% (400 ppm)
Oxygen (O)	~0%	~0.06% (600 ppm) → Problematic
Temperature	~1400 °C	~1600 °C

Conceptual Explanation:

While oxygen injection successfully drives out C, Si, Mn, and P, the inevitable trade-off is that dissolved oxygen enters the liquid steel. This necessitates secondary steelmaking (deoxidation and trimming) to reduce total combined impurities down to ~100 ppm for finished steel [30:10].

---

4. Thermal Economics of Primary Steelmaking

Primary steelmaking operates without any external fuel source. It is an autogenous process—it sustains its own temperature requirements entirely through sensible heat and the chemical heat of internal exothermic reactions [39:11].

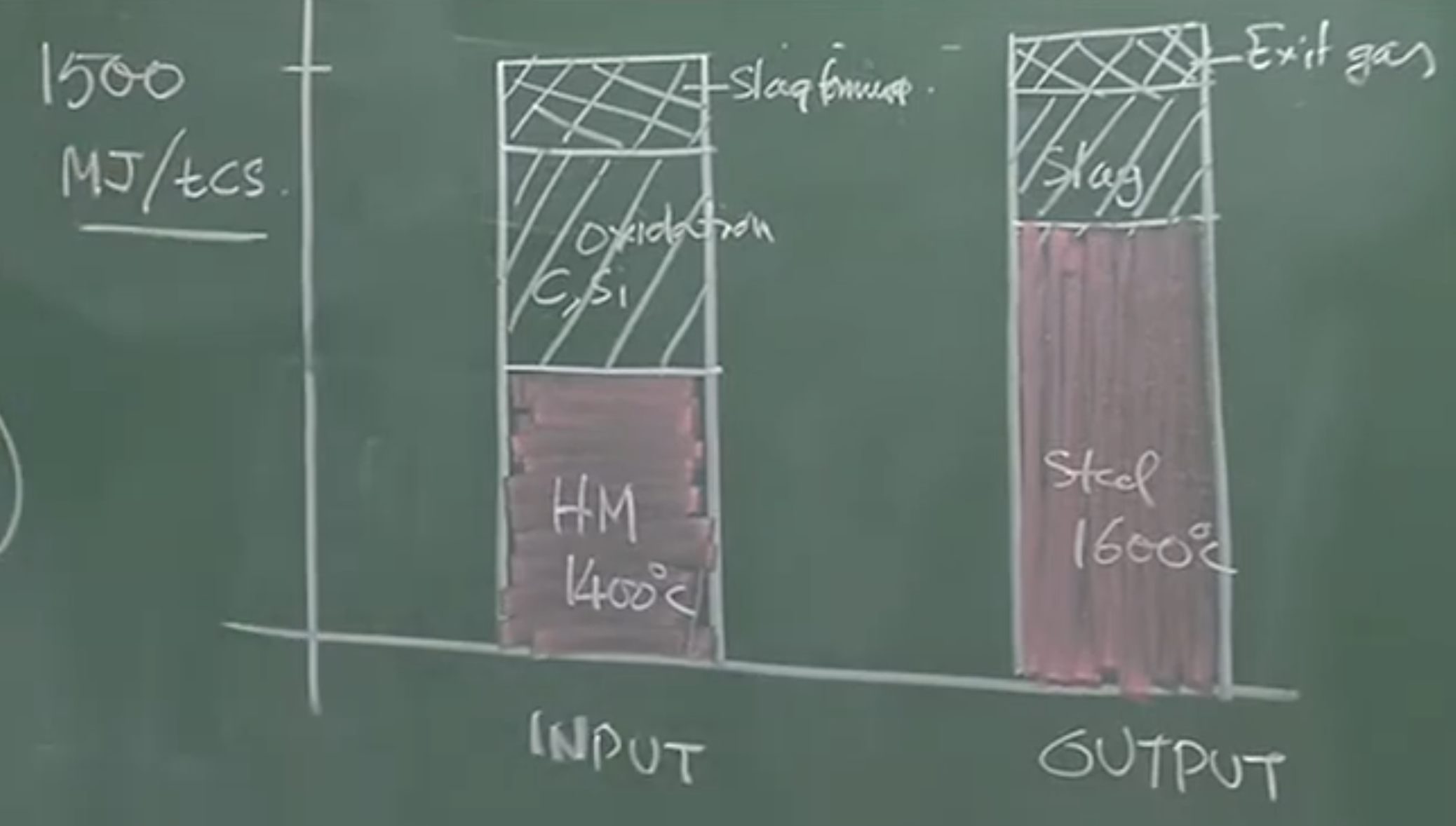

Heat Balance (Per Ton of Crude Steel) [00:32:21 - 00:35:42]

Total Heat Input Required: ~1,500 MJ / ton of steel

Heat Input Breakdown:

• 50% - 55%: Sensible heat from Hot Metal (charged at 1400°C).

• 35% - 40%: Exothermic oxidation of metalloids (primarily Silicon and Carbon).

• ~10%: Slag forming reactions and post-combustion.

Heat Output Breakdown:

• Sensible heat of Liquid Steel at 1600°C.

• Sensible heat of Liquid Slag (Slag rate is ~30%, so ~300 kg of slag per ton of steel).

• Sensible heat of Exit Gases.

Physical Interpretation:

If the hot metal lacks an adequate supply of Carbon and Silicon, the generated exothermic heat will be too small. Consequently, it will be impossible to raise the temperature from 1400°C to 1600°C or maintain a highly fluid slag. This is why the specific metalloid content of incoming hot metal is tightly controlled [36:20].

Tapping Temperature: Because all the internal carbon fuel is burned away during primary steelmaking, the metal will steadily lose heat during the 20–50 minutes of secondary refining. To counteract this, crude steel is tapped slightly hotter (e.g., 1620°C) than pure iron’s melting point (1539°C) [38:28].

---

5. History and Classification of Steelmaking

Before the 1850s, primitive “wrought iron” (essentially carbon-less steel) was produced by mixing solid iron with FeO to oxidize the carbon, then aggressively hammering out the entrapped slag [40:48]. Modern bulk steelmaking began with Sir Henry Bessemer (1850–1860) who commercialized the first pneumatic process (blowing air through molten iron) [41:31].

Acidic vs. Basic Steelmaking [00:42:09 - 00:46:39]

Modern steelmaking categorizes reactor processes based on the refractory lining and flux chemistry used to handle specific impurities.

1. Acidic Steelmaking (Obsolete today):

• Condition: Used only when low-phosphorus iron ore was available.

• Chemistry: Primarily targets only Silicon removal. Phosphorus cannot be eliminated.

• Refractory Lining: Acidic (Siliceous / Silica-based bricks).

• Flux: No Lime (CaO) is added. If a basic flux like lime were added, it would chemically attack and dissolve the acidic silica lining.

2. Basic Steelmaking (Standard Modern Practice):

• Condition: Handles standard hot metal containing significant Phosphorus.

• Chemistry: Simultaneously removes Silicon and Phosphorus.

• Flux: Massive additions of Lime (CaO) are required to chemically “fix” oxidized phosphorus as Calcium Phosphate and silicon as Calcium Silicate, trapping them in the slag.

• Refractory Lining: Must be Basic (MgO / Magnesia or Alumina based) so that the massive additions of basic lime flux do not eat away the furnace lining.
